Lecture 10
Fitting Probability Models
to Frequency Data

ABD 3e Chapter 8

Chris Merkord

Learning Objectives

By the end of this lecture, you should be able to:

• Define frequency data and a proportional model.
• State the null and alternative hypotheses for a chi-squared goodness-of-fit test.
• Calculate expected counts under a specified probability model.
• Compute and interpret the chi-squared test statistic.
• Determine a \(P\)-value or critical value and draw a conclusion.
• Evaluate whether the assumptions of the chi-squared test are met.
• Distinguish among the binomial test, chi-squared test for proportions, and chi-squared test of independence.

When Do Observed Counts Match What We Expect?

In biology, we often observe counts in categories:

• Births by day of week
• Genes on chromosomes
• Animals by habitat type
• Individuals by behavior

But a key question is:

Do the observed counts match what we would expect under a probability model?

This is the central idea behind the chi-squared goodness-of-fit test.

Conceptual illustration of the discrepancy between observed category counts and counts predicted under a probability model, the quantity summarized by the chi-squared goodness-of-fit statistic.

What is Frequency Data?

Frequency data = counts of observations in each category of a single categorical variable.

• One variable
• Several levels (categories)

Each row in the table tells us:

• How many observations fall into that category?

Frequency table showing the activities of 88 people at the time they were attacked and killed by tigers near Chitwan National Park, Nepal, from 1979 to 2006 (Table 2.2-1, Whitlock & Schluter 2015)

Activity	Frequency (number of people)
Collecting grass or fodder for livestock	44
Collecting non-timber forest products	11
Fishing	8
Herding livestock	7
Disturbing tiger at its kill	5
Collecting fuel wood or timber	5
Sleeping in a house	5
Walking in forest	3
Using an outside toilet	2
Total	88

And what is a model?

A model is a simplified description of a system used to:

• Explain patterns
• Make predictions
• Test ideas

Types of models:

• Physical model – tangible representation
• Verbal model – conceptual explanation
• Mathematical model – uses equations or probabilities to make precise predictions

In this course, we focus on probability models.

A probability model describes how likely various outcomes are

Example of a probability model: binomial model for spermatogenesis genes

• Number of genes on chromosomes should be proportional to their length.
• Long chromosome → more genes.
• X chromosome is short → should have few genes.
• If spermatogenesis genes were randomly distributed throughout the genome, the X chromosome should have relatively few (≈ 1.5 genes).

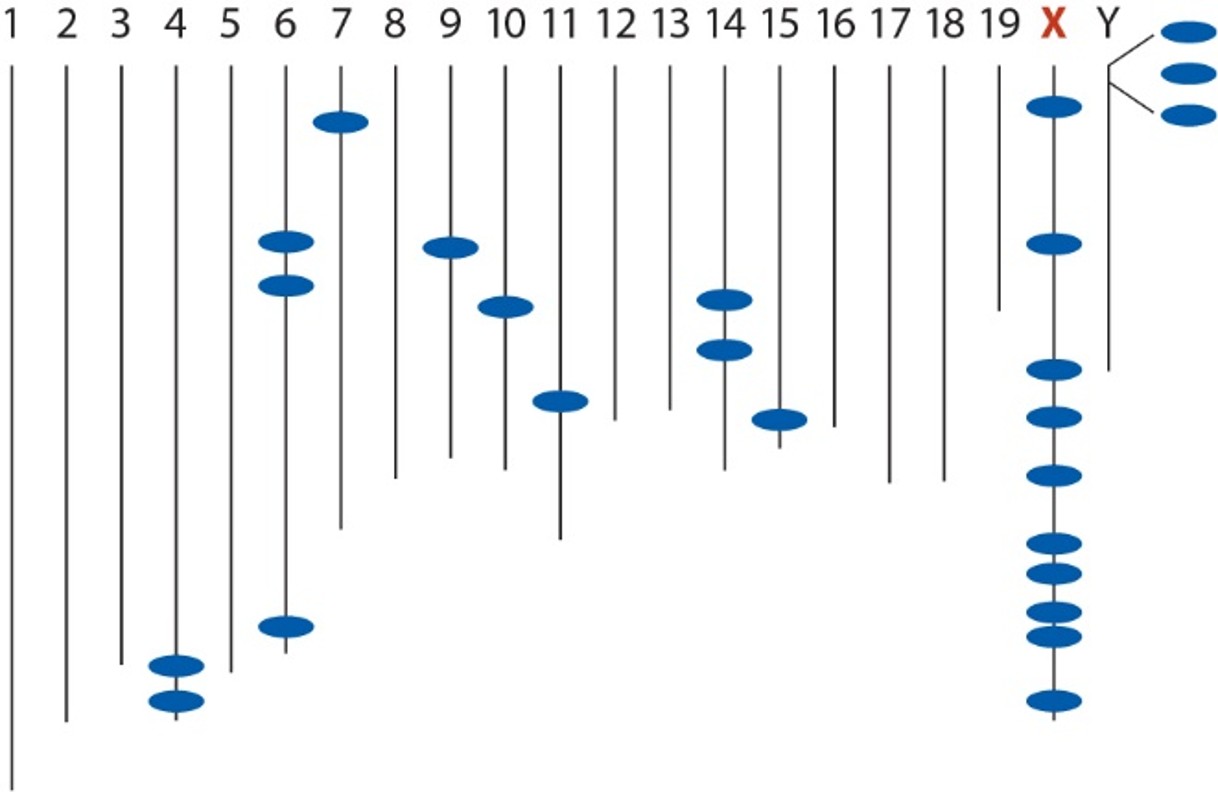

Cartoon of the mouse genome. Blue ovals represent spermatogenesis genes. Lines represent chromosomes and are proportional in length to real life. Whitlock & Schluter (2015)

The proportional model

In many biological problems, the null hypothesis assumes that outcomes occur in fixed proportions.

A proportional model states that:

• Each category has an expected proportion.
• The expected number of observations in each category depends on:
  • The total sample size
  • The proportion assigned to that category.

We compare observed counts to these expected counts.

The binomial model is a special case with two categories.

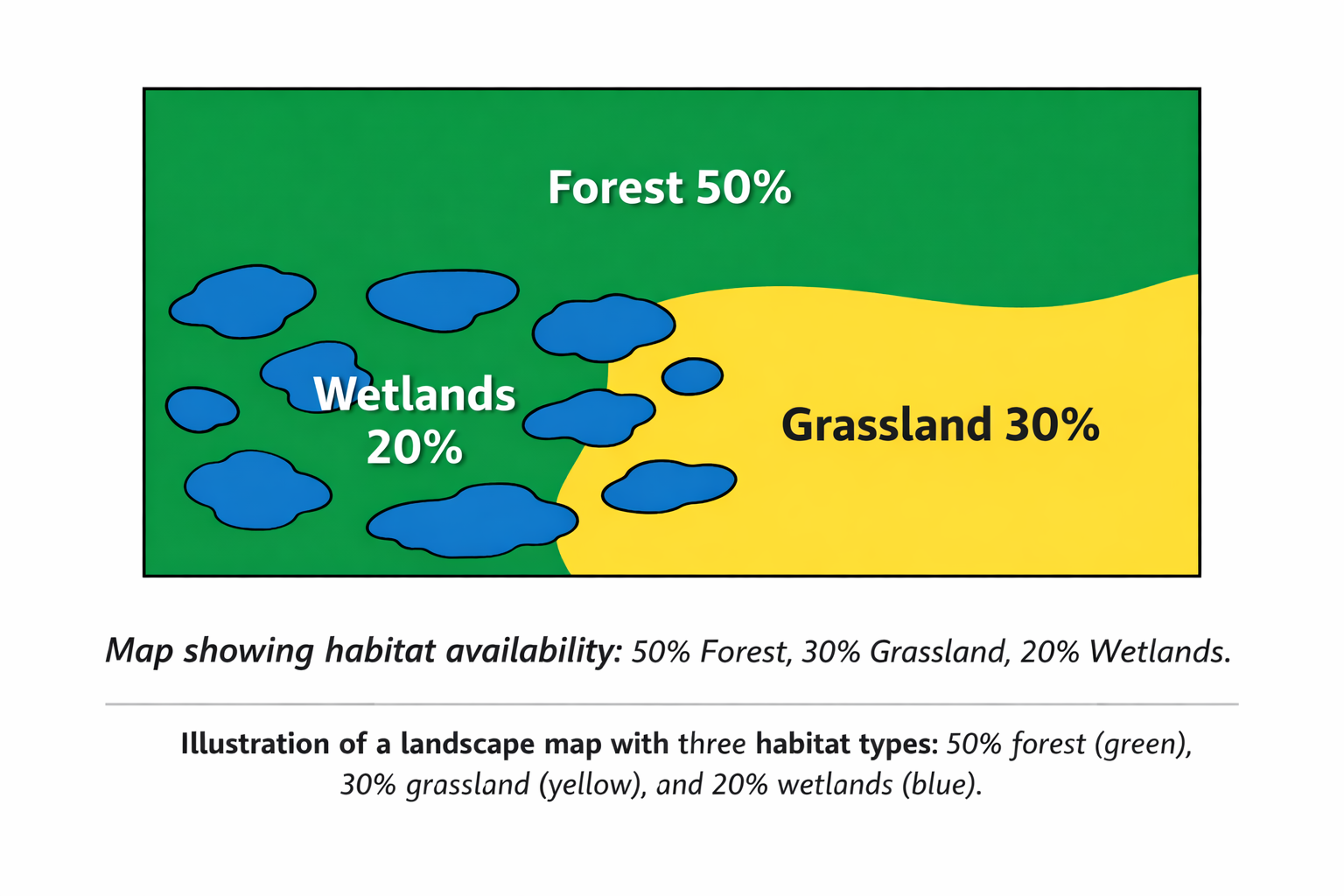

Habitat availability across a landscape showing forest (50%), grassland (30%), and wetlands (20%) as the expected proportions under a proportional model.

Example: A Proportional Model with More Than Two Categories

Observed data: number of births on each day of the week.

Null hypothesis (proportional model):

• Births are equally likely on each day.
• Each day should account for about one-seventh of all births.

If the model is correct:

• Observed frequencies should be close to equal.
• Large deviations suggest the model may not fit.

Do these data appear consistent with equal proportions?

\(n=350\) births in the U.S. in 1999

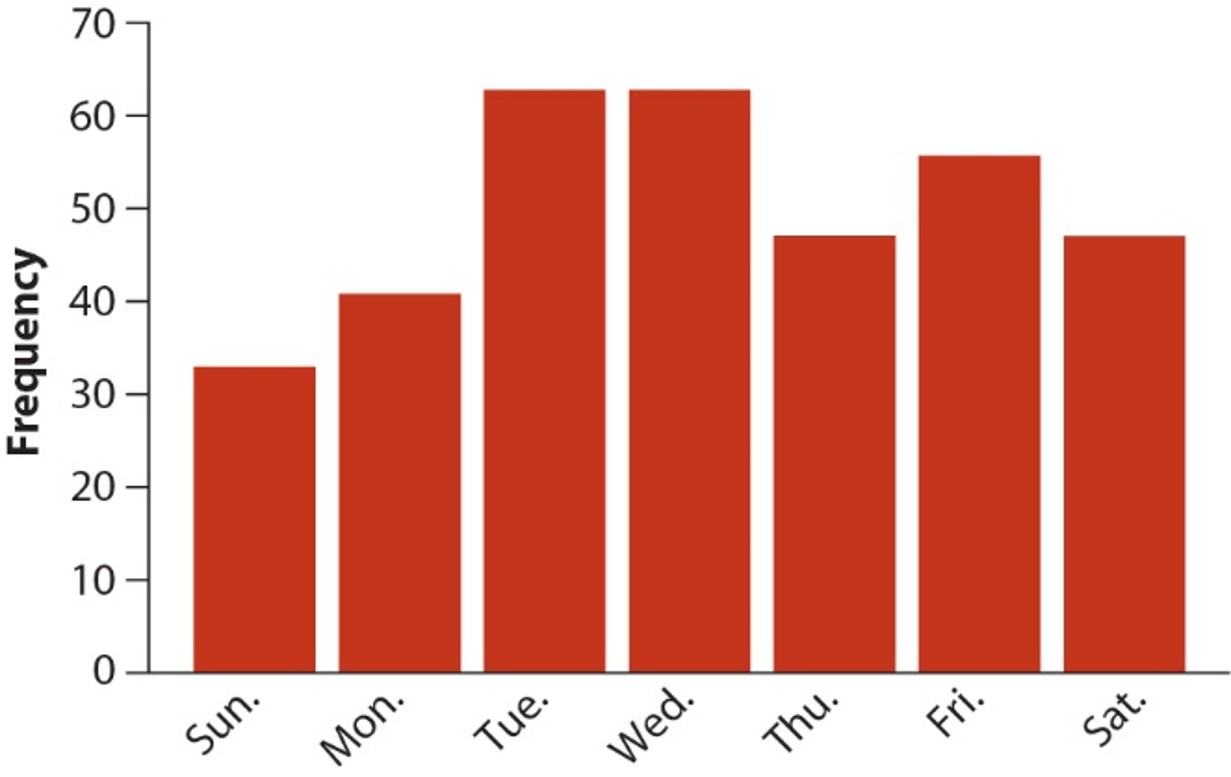

Observed number of births by day of the week, used to evaluate whether the distribution is consistent with equal proportions under a proportional model. A random sample of 350 births in the U.S. in 1999. Source: The U.S. National Center for Health Statistics, Ventural et al. (2001)

The Chi-Squared Goodness-of-Fit Test

The chi-squared goodness-of-fit test evaluates whether observed frequency data are consistent with a specified probability model.

It is used when:

• We have one categorical variable.
• We have counts in two or more categories.
• The null hypothesis specifies expected proportions.

It asks:

Are the observed frequencies close enough to what the model predicts?

Step 1: State the Null Model

Example: births by day of the week

• Null hypothesis (proportional model):

  \(H_0\): Births are equally likely on each day of the week.

• Alternative hypothesis:

  \(H_A\): Births are not equally likely on each day of the week.

To compute expected frequencies, we use the proportions specified by the null model

• Important: These data come from a single calendar year (1999)
  • 1999 had 365 days.
  • Not every day of the week occurred exactly 1/7 of the time
  • Friday occurred 53 times; all other days occurred 52 times
• Under \(H_0\):

  • Expected proportion for a day = (number of that day in 1999) / 365

  • Expected count = total births × that proportion

  • Proportions are therefore not exactly 1/7

Day	Number of days in 1999	Proportion of days in 1999	Expected frequency of births
Sunday	52	52/365	49.863
Monday	52	52/365	49.863
Tuesday	52	52/365	49.863
Wednesday	52	52/365	49.863
Thursday	52	52/365	49.863
Friday	53	53/365	50.822
Saturday	52	52/365	49.863
Sum	365	1	350

Measuring discrepancy

We need a way to measure the discrepancy between:

• Observed frequencies (data)
• Expected frequencies (null hypothesis)

The chi-square statistic measures total discrepancy across all categories.

\[ \chi^2 = \sum \frac{(O - E)^2}{E} \]

For each category:

• Subtract expected from observed

• Square the difference

• Scale by the expected count

• Add across all categories

Large values of \(\chi^2\) indicate greater disagreement with the model.

Example: One Category’s Contribution to \(\chi^2\)

Let’s calculate the chi-squared contribution for Sunday.

Observed births:
\(O = 33\)

Expected births:
\(E = 49.863\)

We plug these into the formula:

\[ \frac{(O - E)^2}{E} \]

\[ \frac{(33 - 49.863)^2}{49.863} \\=\frac{(-16.863)^2}{49.863} \\=\frac{284.36}{49.863} \\\approx 5.70 \]

Sunday contributes 5.70 to the total chi-squared statistic.

The total \(\chi^2\) is the sum of all days’ contributions.

Summing Category Contributions to Obtain \(\chi^2\)

• We repeat for each day of the week
• The chi-squared statistic is the sum of all category contributions:

\[ \chi^2 = \sum \frac{(O - E)^2}{E} \]

• Adding the daily contributions gives:

\[ \chi^2 = 15.05 \]

This value summarizes the total discrepancy between observed and expected frequencies.

Day	Observed number of births	Expected number of births	\[ \frac{(O - E)^2}{E} \]
Sunday	33	49.863	5.70
Monday	41	49.863	1.58
Tuesday	63	49.863	3.46
Wednesday	63	49.863	3.46
Thursday	47	49.863	0.16
Friday	56	50.822	0.53
Saturday	47	49.863	0.16
Sum	1	350	15.05

The sampling distribution of \(\chi^2\) under the null hypothesis

• Assume the null hypothesis is true.

• If we repeatedly take random samples of \(n = 350\) births and compute \(\chi^2\) each time:

  • The test statistic varies from sample to sample.
  • The collection of those values forms a sampling distribution.

• Tells us how unusual our observed \(\chi^2\) value would be under \(H_0\).

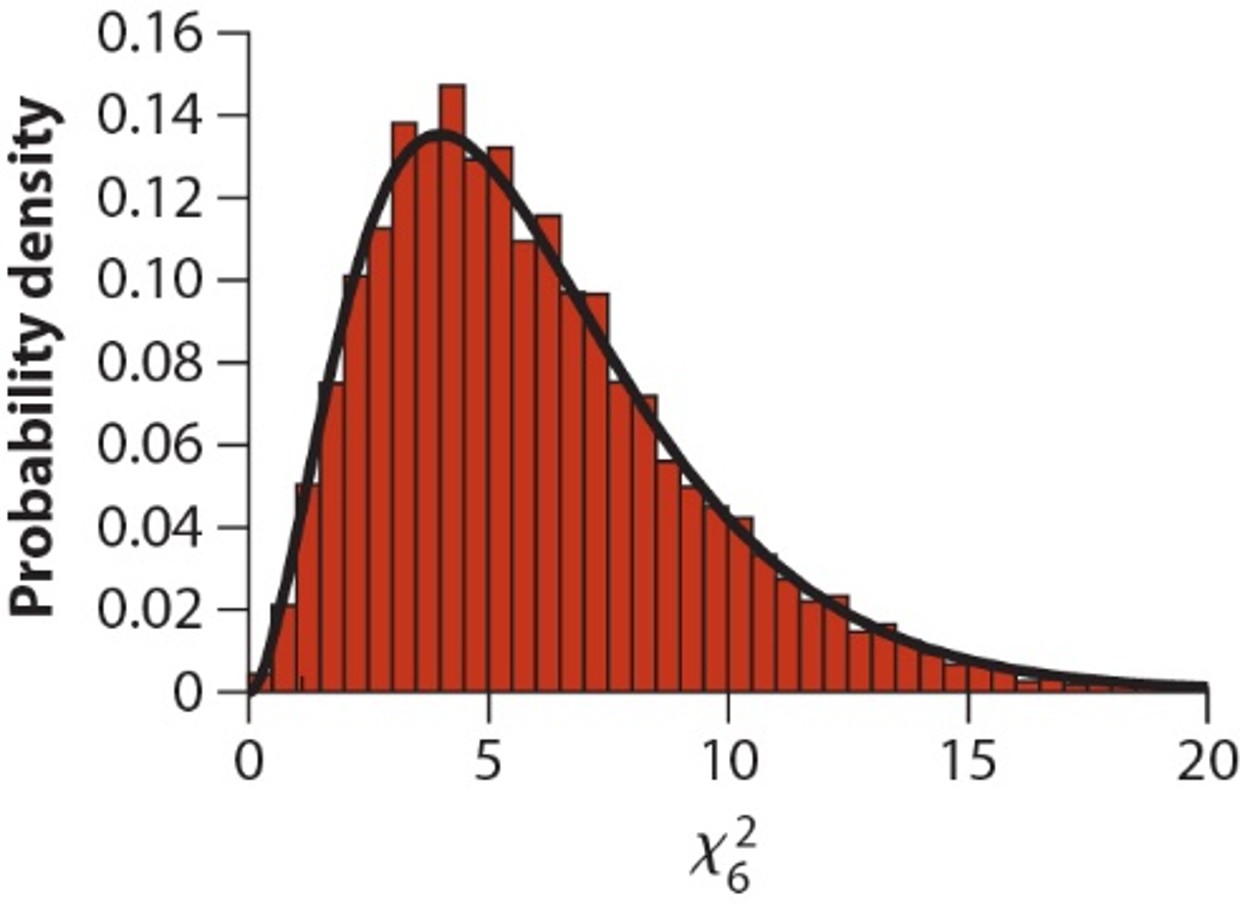

Sampling distribution of \(\chi^2_6\) under the null hypothesis, with red bars showing the empirical distribution from simulated samples and the black curve showing the theoretical chi-squared distribution with 6 degrees of freedom.

There are many \(\chi^2\) sampling distributions – one for each degrees of freedom

• To find which \(\chi^2\) distribution you should use, calculate the degrees of freedom

\[ df=\\(\text{Number of categories})-1\\-(\text{Number of parameters}\\\text{ estimated from the data}) \]

\[ df = 7-1-0=6 \]

• Write as \(\chi^2_{df}\) , for example \(\chi^2_{6}\)

Sampling distribution of \(\chi^2_6\) under the null hypothesis, with red bars showing the empirical distribution from simulated samples and the black curve showing the theoretical chi-squared distribution with 6 degrees of freedom.

Calculating the \(P\)-Value

• The \(P\)-value is the probability of obtaining a test statistic at least as large as the observed value, assuming \(H_0\) is true.
• For the chi-squared test:
  • Larger \(\chi^2\) values indicate greater disagreement with the null model.
  • If observed = expected, then \(\chi^2 = 0\).
  • As discrepancy increases, \(\chi^2\) increases.
• Therefore: \[ P = \operatorname{Pr}(\chi^2 \ge 15.05 \mid H_0) \]

• We calculate this probability using the right tail of the \(\chi^2\) distribution.
• The red region shows the \(P\)-value.

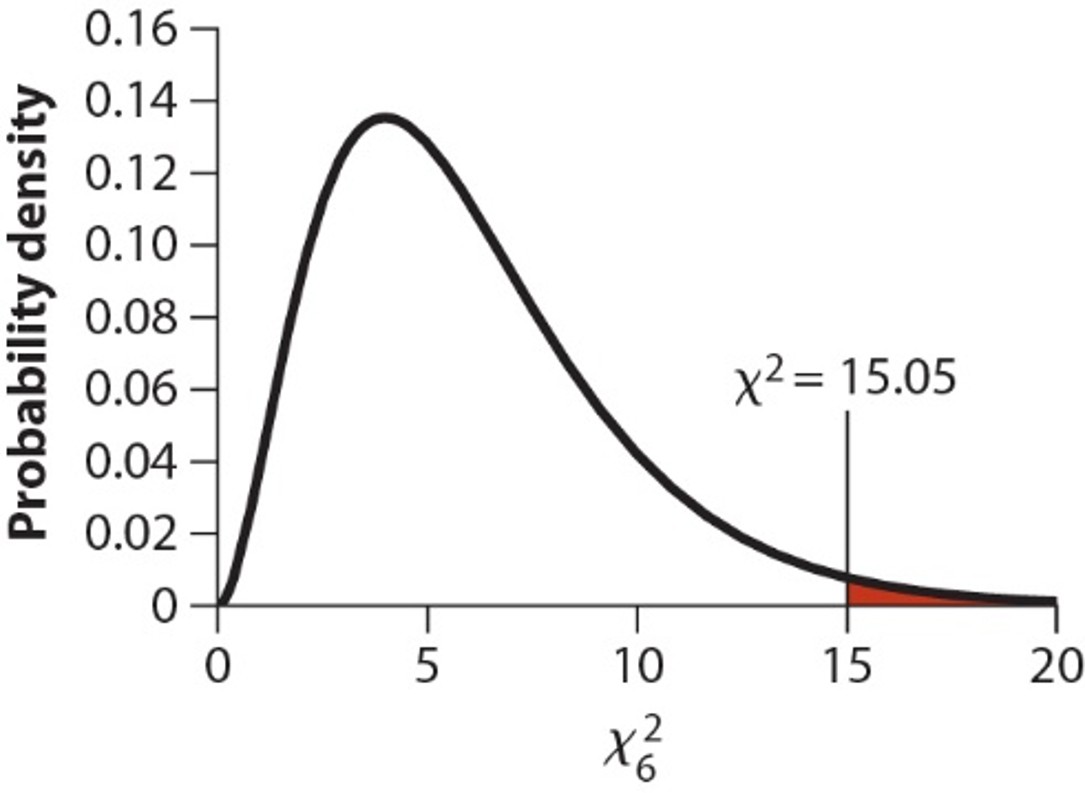

Chi-squared distribution with 6 degrees of freedom. The red area represents the probability of obtaining a value of \(\chi^2\) greater than or equal to 15.05 under the null hypothesis.

Making a Decision: Compare \(P\) to \(\alpha\)

• Choose a significance level \(\alpha\) (e.g., 0.05).

• Decision rule:

  • If \(P \le \alpha\), reject \(H_0\).
  • If \(P > \alpha\), fail to reject \(H_0\).

When using software:

• The \(P\)-value is computed directly.
• Compare it to \(\alpha\) to make your decision.

When working by hand:

• Instead of computing \(P\), compare the test statistic to a critical value.
• The critical value marks the boundary between rejecting and not rejecting \(H_0\).
• Look up the critical value in a chi-squared table (using the correct degrees of freedom).

Both approaches lead to the same conclusion.

In general, a critical value is the value of a test statistic that marks the boundary of a specified area in the tail (or tails) of the sampling distribution under \(H_0\).

Finding a Critical Value in a Chi-Squared Table

• Determine the degrees of freedom:

  • \(df = k - 1\)
  • Here, \(df = 6\)

• Choose a significance level:

  • \(\alpha = 0.05\)

• Locate the intersection of:

  • Row for \(df = 6\)
  • Column for \(\alpha = 0.05\)

The critical value is:

\[ \chi^2_{0.05,\,6} = 12.59 \]

Decision rule:

• Reject \(H_0\) if \(\chi^2 \ge 12.59\)

Interpreting the Result

After comparing \(P\) to \(\alpha\):

• If \(P \le \alpha\):

  • Reject \(H_0\).

  • The data provide evidence that the observed frequencies differ from the proportions specified by the null model.

• If \(P > \alpha\):

  • Fail to reject \(H_0\).

  • The data are consistent with the null model.

Example:

• Since \(\chi^2 = 15.05\) exceeds the critical value of 12.59 (and \(P < 0.05\)), we reject \(H_0\) and conclude that births were not equally distributed across days of the week in 1999.

Important:

• Rejecting \(H_0\) does not prove the model is false.

• Failing to reject \(H_0\) does not prove the model is true.

We are evaluating evidence, not proving certainty.

Assumptions of the Chi-Squared Goodness-of-Fit Test

For the chi-squared approximation to be valid:

1. Independence

• Observations are independent.
• Data represent a random sample.

2. Correct null model

• The null hypothesis specifies the expected proportions.

3. Expected count conditions

• All expected counts must be ≥ 1.
• No more than 20% of expected counts may be < 5.

Comparing Tests for Proportions and Frequency Data

How These Tests Fit Together

Test	Scientific Question	Data Structure	Distribution Used	Lecture	R Function
Binomial test	Is a single proportion equal to a hypothesized value (e.g., \(p = 0.3\))?	One group, two outcomes	Exact binomial	Lecture 9	binom.test()
Chi-squared test for proportions	Is a proportion equal to a hypothesized value (large \(n\)), or do two group proportions differ?	One or two groups, two outcomes	Chi-squared (approximation)	Lecture 10	prop.test()
Chi-squared test of independence	Are two categorical variables associated?	Two variables, \(r \times c\) table	Chi-squared	Lecture 12	chisq.test()

Notes:

• For a 2 × 2 table, prop.test() and the chi-squared test of independence are mathematically equivalent.
• In lab, we used prop.test() because our sample size was large, making the chi-squared approximation appropriate and computationally efficient.
